Event Portal – Additional Resources

NEW!!!

Private Facebook Group for Tournament Admins
Request an Invite

Resources for Standard Events
(not using bracket program):

Instructions

Event Portal Quick Guide (Updated 26 August 19)
How-To Events – General FAQs and Guides
Master Roster Tool User Guide (Updated 26 August 19)
Standard Event Match Setup Guide & Scoring App Basics (post on every board)
Rental Tablet Guidelines: DC Tablets | ADO Tablets

Printable Signs

DartConnect Check-In (Reminds players about this important step)
Watch matches on DCTV (make players aware of LIVE scoreboards to share with followers)
Leaderboard Overview (tips for analyzing performance stats)

Resources for Digital Steel Pro Events
(using bracket program):

Instructions & Documentation

Bracket Program Updates (Sept 2019)
Bracket Manager Full Program Instructions (Updated 26 August 19)
Quick Guides:
- Event Portal Quick Guide (Updated 26 August 19)
- Bracket Operator’s Quick Guide / SOS Guide (Created 23 May 19)
Master Roster Tool User Guide (Updated 26 August 19)
Video: Master Roster Tool – Basic Player Export
Video: How to do a seeded draw
Onsite Event Registration System:
- Registration Kiosk User Guide (Updated 12 July 19)
- Cashier Station User Guide (Working Draft 25 July 2019)
DCTV – Tournament Director’s Guide *
Digital Steel Pro Match Setup Guide (post on every board)
Video Tutorial – DS Automated Match Setup
Rental Tablet Guidelines: DC Tablets | ADO Tablets

Printable Signs

DartConnect Check-In (Reminds players about this important step)
Watch matches on DCTV (make players aware of LIVE scoreboards to share with followers)
Leaderboard Overview (tips for analyzing performance stats)
Event Registration System *
DCTV – Player’s Personal Digital Assistant *
Digital Steel Match Setup Guide

Group Play – Round Robin

Video: Basics of Group Play Set Up
Video: Master Roster Tool – Basic Player Export
Video: Doubles/Pairs Group Play Set Up
Group Play Detailed Instructions (Draft July 2019)
Mapped Elimination Bracket Examples

* Coming Soon

Registration Kiosk – Tablet Holders

Highly recommended if using the onsite registration kiosk system!

Registration Kiosk User Guide

$4.99 USD at Ikea

Display your registration tablets at an ergonomic angle perfect for tabletop display.

At just $4.99 USD and available from Ikea, these tablet stands are an ideal way to set up your onsite registration kiosk. DartConnect highly recommends this affordable solution for Digital Steel Pro events.

Purchase at Ikea

PRO TIP: Lock the Registration System to the Tablet

Prevents players from navigating away from the registration program. Follow these instructions:

Save the Registration System to Your Home Screen - Apple (Safari)

With the Registration System website loaded in Safari, do the following:

When finished, you should see the following icon on one of your home screen pages:

Save the Registration System to Your Home Screen - Android (Chrome)

1) With the Registration System website loaded, open the Google Chrome Browser Menu (the dots or lines on the left of the navigation bar)

2) Select: Add to Home Screen

3) Close the browser and look for the icon on your home page

When finished, you should see the following icon on one of your home screen pages:

Bracket Program SOS – In Case of Emergency

This information can be found inside the bracket program by clicking the SOS Icon:

A match is not appearing on the tablet. What do I do?

This information also appears in the addendum section of the Bracket Program Instructions.

If the tablet does not show the match listing, do the following:

Double-check that board has been assigned in the bracket program
Check that the tablet is successfully connected to Wifi and has an Internet connection, if no Internet, connect tablet and try again to update match list (Open a web browser and go to bing.com or msn.com to confirm you have Internet)
Make sure you have waited at least a few minutes for the match listing to update after clicking “Check for more matches”
Try to resolve these issues before resorting to “Create an Event Match” manual set up

If the match is still missing, create the match manually:

Click “Check for more matches”
Click the new RED button that appears that says “Create an Event Match”
Pick the correct event from menu
Select game from game menu
Select players from roster – there are duplicate player lists on the left and right. Pick one player/team from the list on left, then pick opponent from list on right.
Click green “Cork for Start” button
Pick the # of legs for this match, tap round # at top if applicable (i.e. Top 8, Top 4, etc)
Now play match as usual
You will NOT receive a toast result for this match but can manually advance the winner in the bracket by clicking on the winner’s name

I’ve advanced the wrong player as the winner - how do I fix this?

This information also appears in the addendum section of the Bracket Program Instructions.

How to Undo an Error

If you have advanced the wrong player or recorded an incorrect score:

Click Green Button “Undo (OFF)” in upper-right toolbar to toggle Undo Mode to ON
Click on the name of the player/team who was incorrectly advanced
You will see the player/team name moved back to previous position

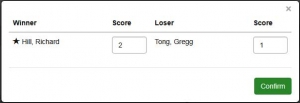

Now select the correct winner and re-input correct score if prompted:

Click Red Button “Undo Mode (ON)” again in upper right to toggle Undo Mode Off (IMPORTANT) and save changes.

I need to redraw the bracket after I’ve saved it

This information also appears in the addendum section of the Bracket Program Instructions.

How to Roll Back Event

If for any reason you need to re-draw your bracket after you have saved it, you can use “Roll Back Event” to reset the event as long as no matches have been started.

To access the Roll Back Event tool, click the SOS Icon inside the bracket program and open these instructions:

Step 1. Select the event you wish to roll back, enter confirmation password and click the red button, “Roll it back”

Step 2. Return to Main Menu by clicking the Home Icon in the upper left corner:

Step 3. You can now re-create the bracket for the event you rolled back. Click “Generate Event Bracket”:

I need to change a player or team after the draw is saved

This information also appears in the addendum section of the Bracket Program Instructions.

You can change any players, teams or Byes in the first round of a bracket for any match that has not yet started. This is commonly used to fill a Bye spot to accommodate a late entry or to add someone that was left out.

How to use the “Player Swap” tool.

Step 1: Click the Player Swap button in the toolbar to open a list of first-round matches:

Step 2: Select the player (or Bye) you wish to replace, then click OK to confirm:

Step 3: Select the new player from the available player list (make sure new player(s) are checked into the Master Roster), then click Ok to confirm:

The bracket page will now auto-refresh to reflect the change.

I need to replace a Bye with a player/team in the first round (or vice versa)

This information also appears in the addendum section of the Bracket Program Instructions.

How to use the “Player Swap” tool.

Step 1: Click the Player Swap button in the toolbar to open a list of first-round matches:

Step 2: Select the player (or Bye) you wish to replace, then click OK to confirm:

Step 3: Select the new player from the available player list (make sure new player(s) are checked into the Master Roster), then click Ok to confirm:

The bracket page will now auto-refresh to reflect the change.

Event Marketing Resources

For Facebook & other Social Media, Websites and Emails

Use the following links:

Online Event Checkin: https://checkin.dartconnect.com/
DCTV: https://tv.dartconnect.com

To use one of the button graphics below, right-click on the button you want and select “Save Image As” from the menu that appears to save it to your computer. (coming soon)

If you need additional help, please contact us at support@www.dartconnect.com.
